Gantt Chart Template With Auto-fill Date Formulas
Gantt Chart Template with Auto-Fill Date Formulas
A Gantt chart is a powerful visual tool used for project management, allowing you to schedule, track, and manage tasks, resources, and timelines effectively. Creating a Gantt chart from scratch can be time-consuming, especially when dealing with complex projects and numerous dependencies. A well-designed Gantt chart template, particularly one incorporating auto-fill date formulas, significantly streamlines this process.
The Power of Auto-Fill Date Formulas
The true benefit of a Gantt chart template lies in its ability to automatically calculate and update dates based on dependencies and task durations. This is achieved through the use of date formulas within the spreadsheet (typically in programs like Excel or Google Sheets). Instead of manually entering start and end dates for each task, you can use formulas that link dates to each other and automatically adjust them when task durations or dependencies change. This ensures that your Gantt chart remains accurate and up-to-date, saving you countless hours of manual adjustments.
Essential Components of a Gantt Chart Template
A robust Gantt chart template usually includes these key components:
- Task List: A column listing all the individual tasks or activities that comprise the project.
- Start Date: The date on which a task is scheduled to begin. This can be manually entered or calculated using formulas.
- End Date: The date on which a task is scheduled to be completed. This is typically calculated using the start date and the duration.
- Duration: The estimated time (in days, weeks, or months) required to complete a task.
- Predecessors: This column specifies which task must be completed before the current task can begin. This is crucial for creating dependencies and automatic date adjustments.
- Progress: A percentage indicating how much of a task has been completed. This can be used to visually track progress on the Gantt chart.
- Resource Allocation: An optional column to assign resources (e.g., team members, equipment) to specific tasks.

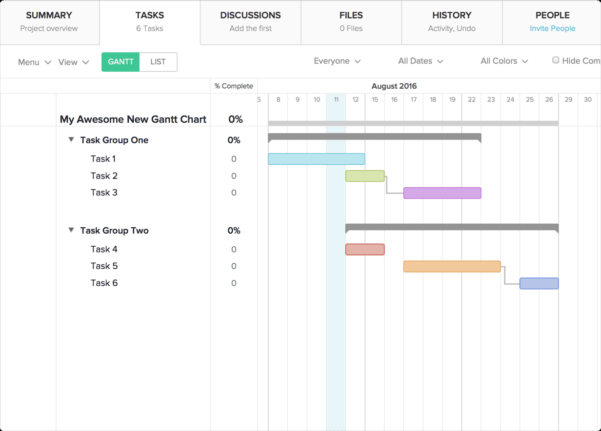

- Gantt Chart Visualization: The visual representation of the project timeline, where tasks are displayed as horizontal bars along a timeline. The length of the bar represents the task’s duration.
Implementing Auto-Fill Date Formulas
Here’s a breakdown of how to implement auto-fill date formulas, with examples using Excel/Google Sheets syntax:
- Setting Up the Dependencies: The most crucial step is defining the dependencies between tasks. For example, Task B might be dependent on the completion of Task A. In the “Predecessors” column for Task B, you would enter the row number of Task A.
- Formulating the Start Date: The start date of the first task in the project is usually manually entered. For subsequent tasks that have predecessors, the start date formula would reference the end date of the predecessor task.
Example (assuming Task A is in row 2 and Task B is in row 3):
If Task B depends on Task A, the Start Date cell for Task B (e.g., Cell C3) could contain the formula:
=IF(ISBLANK(D2),"",D2)
This formula checks if the predecessor task (Task A, End Date in cell D2) has an end date. If it does, Task B’s start date will be set to the end date of Task A. The `ISBLANK` check prevents errors if the predecessor’s end date is not yet filled in. - Formulating the End Date: The end date is calculated by adding the duration to the start date.
Example:
If the Start Date is in column C and the Duration (in days) is in column E, the End Date cell (e.g., Cell D3) could contain the formula:
=IF(ISBLANK(C3),"",C3+E3)
This formula adds the duration (E3) to the start date (C3) to calculate the end date. The `ISBLANK` check prevents errors if the start date is not yet filled in. - Accounting for Weekends and Holidays: For more accurate scheduling, you can use the `WORKDAY` function to exclude weekends and holidays.
Example:
=IF(ISBLANK(C3),"",WORKDAY(C3,E3,holidays))
This formula uses the `WORKDAY` function, taking the Start Date (C3), Duration (E3), and a range containing holiday dates (named “holidays”) as arguments. You’ll need to define a named range called “holidays” containing a list of holiday dates. The `WORKDAY` function will automatically calculate the end date, skipping weekends and specified holidays. - Conditional Formatting for the Gantt Chart: Use conditional formatting to create the visual representation of the Gantt chart. Select the range of cells representing the timeline, and then create a rule that applies formatting (e.g., fill color) if the date corresponds to a task’s start and end dates. This creates the visual bars that represent task durations.
Benefits of Using a Template
- Time Savings: Significantly reduces the time required to create a Gantt chart.
- Improved Accuracy: Auto-fill formulas minimize the risk of manual errors in date calculations.
- Real-Time Updates: Changes to task durations or dependencies automatically update the entire timeline.
- Enhanced Collaboration: Simplifies project communication by providing a clear visual representation of the project schedule.
- Better Project Tracking: Facilitates easy tracking of project progress against the planned timeline.
Tips for Maximizing Your Gantt Chart Template
- Clear Task Descriptions: Use concise and descriptive task names.
- Accurate Duration Estimates: Take the time to estimate task durations realistically.
- Regular Updates: Regularly update task progress to maintain an accurate view of the project.
- Communicate Changes: Communicate any changes to the schedule to all stakeholders.
- Use Visual Cues: Utilize colors, highlighting, and other visual cues to emphasize critical tasks or potential delays.
Conclusion
A Gantt chart template with auto-fill date formulas is an invaluable asset for effective project management. By leveraging the power of formulas to automate date calculations and dependency management, you can save time, improve accuracy, and enhance collaboration, ultimately leading to more successful project outcomes. By investing in a well-designed template and understanding how to implement date formulas, you’ll be well-equipped to manage even the most complex projects with confidence.
